Simex Asphalt Pavers
Designed to lay asphalt or waste material to fill fixed-section trenches, create sidewalks or widen existing roadways.
- For laying asphalt on sidewalks.
- For laying asphalt over filled trenches.
- For widening roadways.
- For backfilling trenches.
- For laying subbase material.
- Easy to use.
- Easy to clean.
- Lightweight transport.

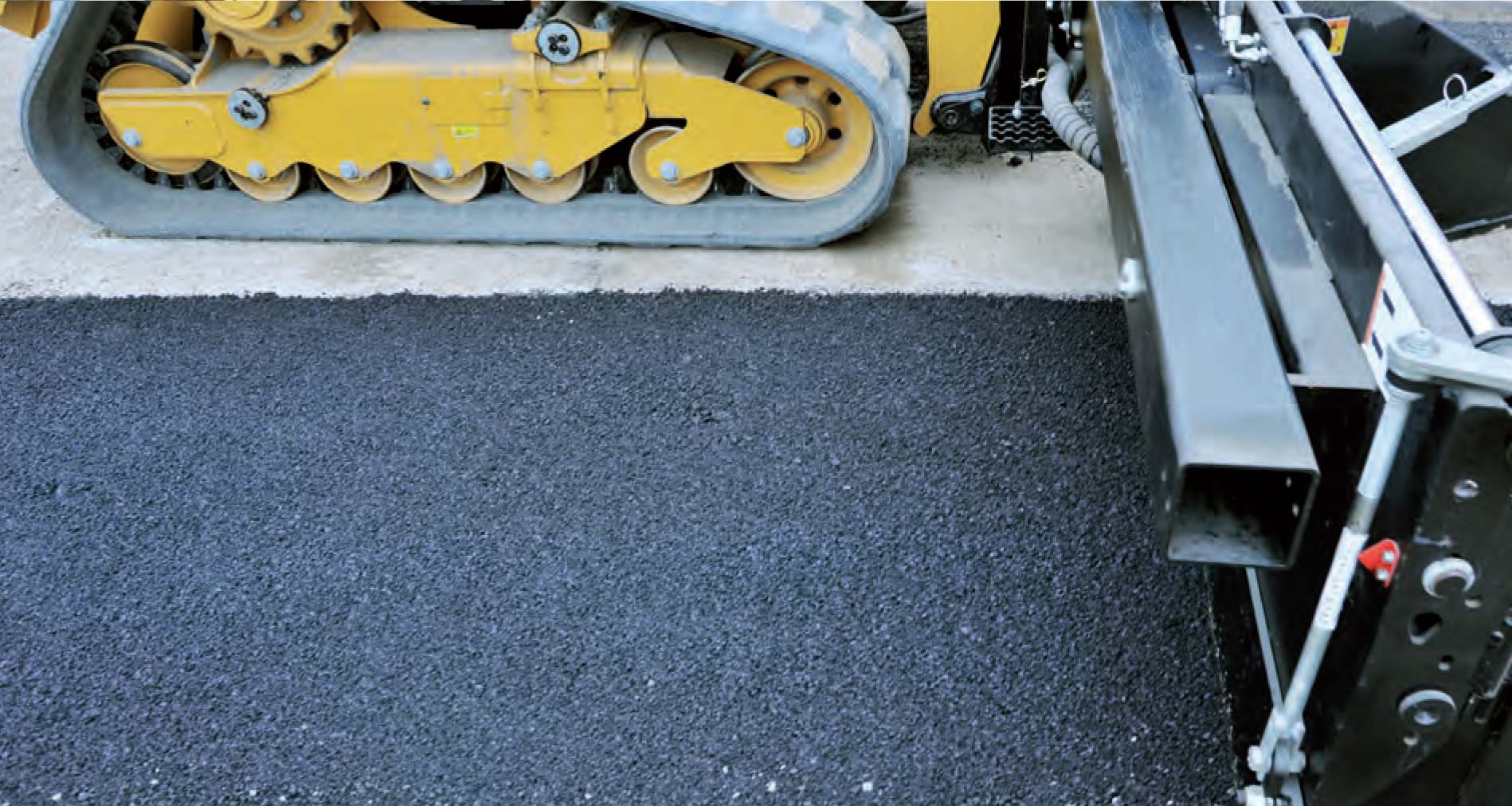

Simex asphalt pavers get the job done fast, while assuring safe, continuous and clean paving.
Working precision.
Lateral extension outside wheel allows sidewalk paving or road widening without having to pass prime mover over laid asphalt.
Lays asphalt on sidewalks or widens roadways without having to pass prime mover over laid material thanks to lateral extension outside the wheel
| ST160 | ST200 | ||
|---|---|---|---|
| A | mm | 1,500 | 1,900 |
| B | mm | 125 | 125 |
| C | mm | 1,560 | 1,960 |
| D | mm | 1,800 | 2,550 |
| E | mm | 1,025 | 1,675 |
| F | mm | 1,550 | 1,750 |
| Paving Width Adjustment | Hydraulic | ||
| Asphalt Width Adjustment (independant onRH/LH side) | Mechanical (screw) or Electrical (optional) | ||
| Asphalt Thickness | mm | 0-100 | |
| Transverse Tilt | 5° | ||
| Locking Device | Yes | ||
| Side Shift | Hydraulic | ||
| Average Working Speed (trenching) | m/min | 50-120 | |
| Operating Weight | kg | 610 | 675 |
| Required Oil Flow and Pressure Weight | l/min – bar | 45-200 | 45-200 |
